产品展示



型号

使用刀片

最小加工径

尺寸

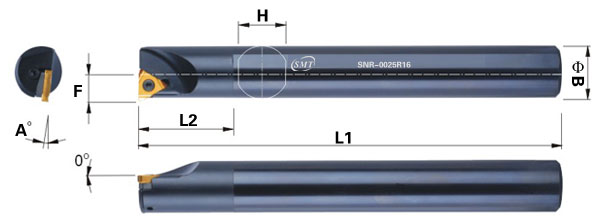

ΦD F L1 L2 H Aº
SNR/L-0010K11 11IR/L＿ ＿ ＿ ＿
11NR/L＿ ＿ ＿ ＿		 Φ12 10 7.4 125 25 9 21º
SNR/L-0013L11 Φ15 16 8.9 140 32 15 15º
SNR/L-0013M16 16IR/L＿ ＿ ＿ ＿
16NR/L＿ ＿ ＿ ＿		 Φ16 16 10.2 150 32 15 17º
SNR/L-0016M16 Φ19 16 11.7 150 40 15 15º
SNR/L-0020Q16 Φ24 20 13.7 180 40 19 21º
SNR/L-0025R16 Φ29 25 16.2 200 45 24 21º
SNR/L-0032S16 Φ36 32 19.7 250 50 30 15º
SNR/L-0040T16 Φ44 40 23.7 300 55 38 15º
SNR/L-0050U16 Φ54 50 28.7 350 60 48 15º
SNR/L-0020Q22 22IR/L＿ ＿ ＿ ＿
22NR/L＿ ＿ ＿ ＿		 Φ24 20 15.6 180 45 19 15º
SNR/L-0025R22 Φ29 25 18.1 200 47 24 21º
SNR/L-0032S22 Φ38 32 21.6 250 55 30 15º
SNR/L-0040T22 Φ46 40 25.6 300 60 38 15º
SNR/L-0050U22 Φ56 50 30.6 350 70 48 15º
SNR/L-0032S27 27IR/L＿ ＿ ＿ ＿
27NR/L＿ ＿ ＿ ＿		 Φ40 32 22.6 250 60 30 21º
SNR/L-0040T27 Φ48 40 26.6 300 65 38 15º
SNR/L-0050U27 Φ58 50 31.6 300 75 48 15º
HSNR/L-0010K11B 11IR/L＿ ＿ ＿ ＿
11NR/L＿ ＿ ＿ ＿		 Φ12 10 7.4 125 25 9 21º
HSNR/L-0013L11B Φ15 16 8.9 140 32.5 15 15º
HSNR/L-0013M16B 16IR/L＿ ＿ ＿ ＿
16NR/L＿ ＿ ＿ ＿		 Φ16 16 10.2 150 32 15 17º
HSNR/L-0016M16B Φ19 16 11.7 150 40 15 15º
HSNR/L-0020Q16B Φ24 20 13.7 180 40 19 21º
HSNR/L-0025R16B Φ29 25 16.2 200 45 24 21º
HSNR/L-0032S16B Φ36 32 19.7 250 50 30 15º
HSNR/L-0040T16B Φ44 40 23.7 300 55 38 15º
HSNR/L-0050U16B Φ54 50 28.7 350 60 48 15º
HSNR/L-0020Q22B 22IR/L＿ ＿ ＿ ＿
22NR/L＿ ＿ ＿ ＿		 Φ24 20 15.6 180 45 19 15º
HSNR/L-0025R22B Φ29 25 18.1 200 47 24 21º
HSNR/L-0032S22B Φ38 32 21.6 250 55 30 15º
HSNR/L-0040T22B Φ46 40 25.6 300 60 38 15º
HSNR/L-0050U22B Φ56 50 30.6 350 70 48 15º
HSNR/L-0032S27B 27IR/L＿ ＿ ＿ ＿
27NR/L＿ ＿ ＿ ＿		 Φ40 32 22.6 250 60 30 21º
HSNR/L-0040T27B Φ48 40 26.6 300 65 38 15º
HSNR/L-0050U27B Φ58 50 31.6 350 75 48 15º
SNR/L-0010M11SC 11IR/L＿ ＿ ＿ ＿
11NR/L＿ ＿ ＿ ＿		 Φ12 10 7.4 150 X 9.4 21º
SNR/L-0016M16SC 16IR/L＿ ＿ ＿ ＿
16NR/L＿ ＿ ＿ ＿		 Φ19 16 11.7 200 X 15.4 15º
SNR/L-0020M16SC Φ24 20 13.7 250 X 19.4 21º
SNR/L-0025M16SC Φ29 25 16.2 300 X 24.4 21º
